OEM Supported Low Noise 4 in 1 All in One Screw Air Compressor with Dryer for Metal Laser Cutting

Short Description:

Fully preinstalled and debugged before delivery. Integrated pipeline layout allows quick startup after power connection without complex piping and professional installation.

Send email to us

Product Detail

Product Tags

Quick Installation & Rapid Integration

Fully pre-installed and debugged before delivery. Integrated pipeline layout allows quick startup after power connection without complex piping and professional installation. It can be rapidly connected to laser cutting production lines to shorten commissioning time and improve workshop efficiency.

Intelligent Protection & Stable 7×24H Operation

Adopting intelligent PLC control system with overload, overpressure, high-temperature shutdown, water shortage warning and self-diagnosis protections. Stable 7×24-hour operation prevents production line interruption caused by air compressor failure, ensuring on-time delivery of bulk processing orders.

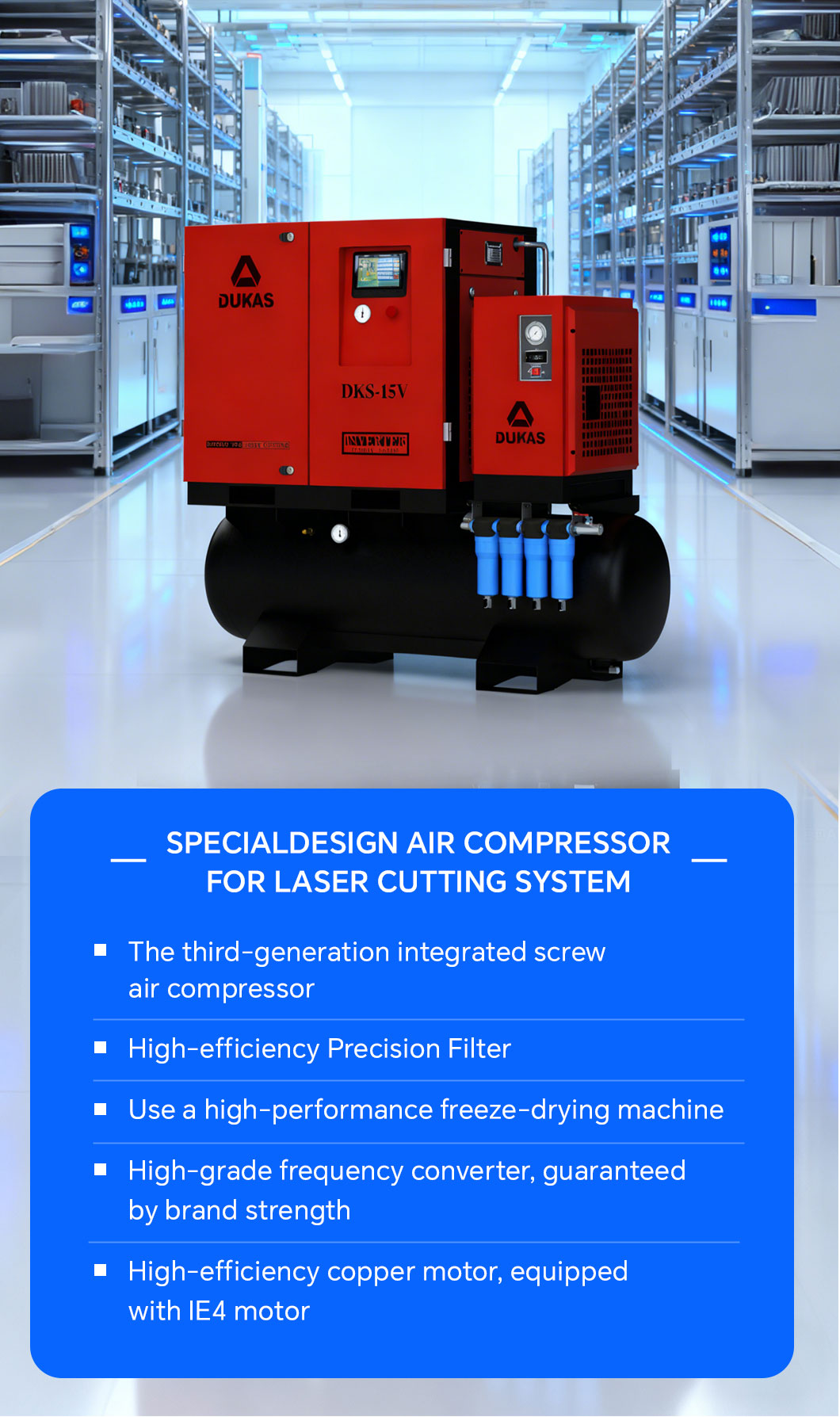

SPECIAL DESIGN AIR COMPRESSORFOR LASER CUTTING SYSTEM

SHANDONG DUKAS MACHINERY MANUFACTURING CO.LTD.

Model	DKS-11F	DKS-11V	DKS-15F	DKS-15V	DKS-22F	DKS-22V	DKS-37F	DKS-37V
(M³/Min) Air Flow Capacity	1.1	1.1	1.5	1.5	2.5	2.5	3.5	3.5
(KW) Power	11	11	15	15	22	22	37	37
(MPa) Working Pressure	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
Starting Way	Y-△	VSD	Y-△	VSD	Y-△	VSD	Y-△	VSD
Air Outlet Size	DN2O	DN20	DN20	DN20	DN20	DN20	DN25	DN25
db(A) Noise	62±2	60±2	62±2	60±2	62±2	60±2	64±2	62±2
(mm) Dimension	180075515 85	180075515 85	180075515 85	180075515 85	210091018 20	210091018 20	210012451 875	210012451 875
(kg) Weight	540	540	550	550	890	890	1180	1180
(W) Applicable Laser	1000-1500	1000-1500	2000-3000	2000-3000	6000-10000	6000-10000	15000-20000	15000-20000
