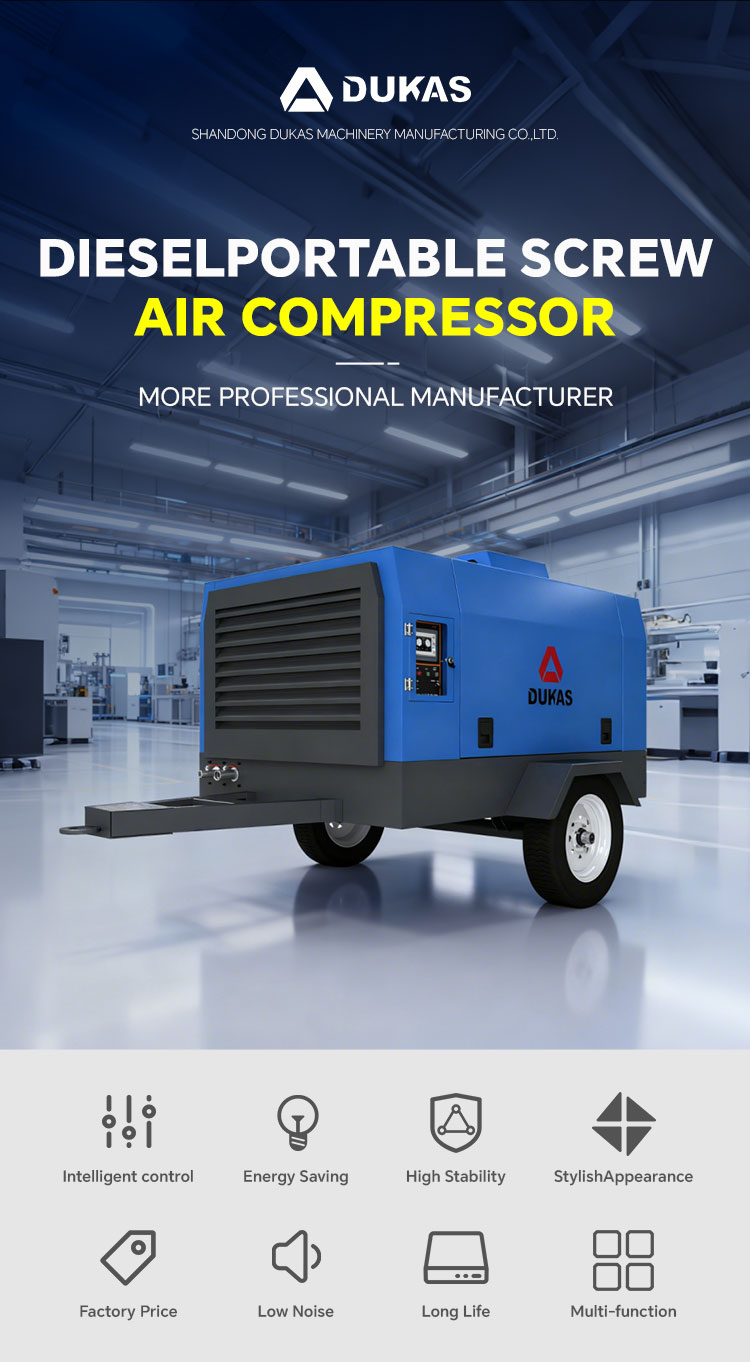

Factory-priced, silent, 185 cfm, 5 m³, 7 bar diesel portable air screw compressor, direct drive. Lubricated PLC gear bearing core.

Main Engine:

It adopts the third generation 5:6 large-diameter rotor design. The main engine and the diesel engine are directly connected through a highly elastic coupling. There is no speed-increasing gear in the middle. The main engine speed is consistent with the diesel engine. The transmission efficiency is higher, the reliability is better, and the service life is longer.

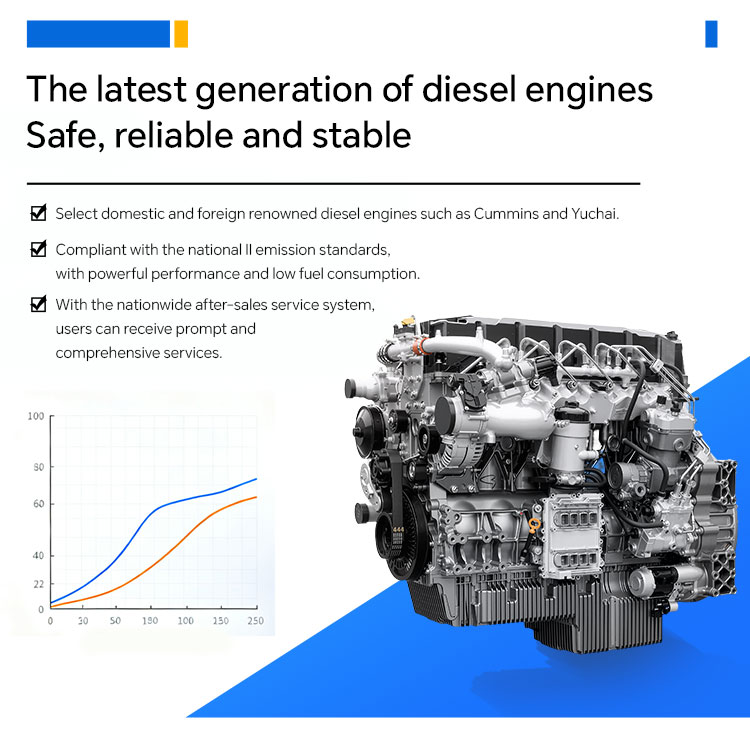

Diesel Engine:

Cummins, Yuchai and other domestic and foreign brand-name diesel engines are selected, which meet the National II emission requirements. They have strong power and low fuel consumption. There is a nationwide after-sales service system, and users can receive prompt and complete services.

Air Volume Control System:

The air volume control system is simple and reliable. It automatically adjusts the air intake volume from 0 to 100% according to the amount of air used. At the same time, it automatically adjusts the engine throttle to save diesel to the maximum extent.

Microcomputer Monitoring:
